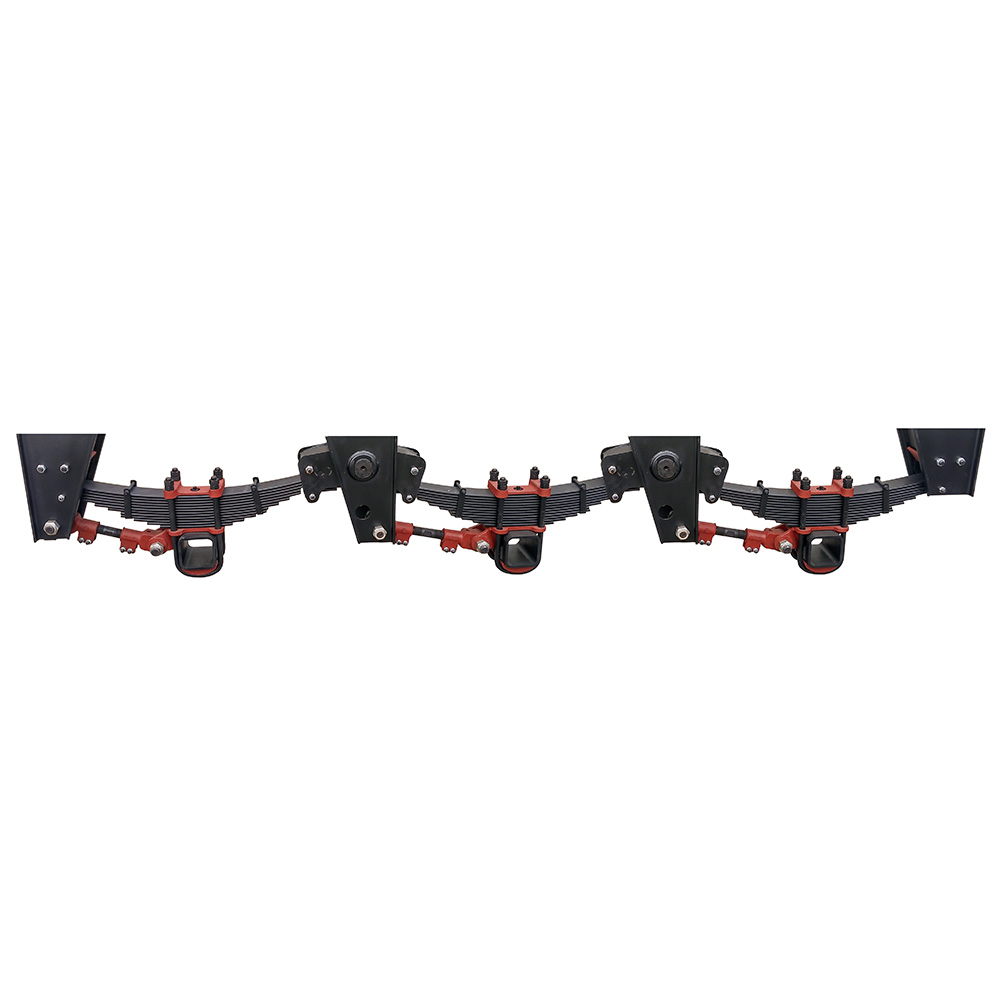

German Type Mechanical Suspension

Availability:
Quantity:
Inquire Add to Basket

German Tandem-axle Mechanical Suspension Specification
Item No. Unladen Laden H(mm) Qty × Thick × Width (mm） Front
Hanger
Thickness		 Equaliser
Hanger
Thickness		 Rear
Hanger
Thickness		 Equalizer
Beam
Thickness		 Axle Load(T)
NA24XA1-00 486 456 138 12×12×100×1200 8 8 10 8 12×2
NA24XA2-00 486 456 138 12×12×100×1200 10 10 10 10 12×2
NA28XA0-00 486 456 138 12×12×100×1200 10 10 10 10 14×2
NA28XA1-00 486 456 138 12×12×100×1200 8 8 10 8 14×2
NA32XA0-00 511 481 138 14×12×100×1200 8 8 10 8 16×2
NA32XA1-00 511 481 138 14×12×100×1200 10 10 10 10 16×2


German Single-axle Mechanical Suspension Specification
Item No. Unladen Laden H(mm) Qty × Thick × Width (mm) Front
Hanger
Thickness		 Equaliser
Hanger
Thickness		 Rear
Hanger
Thickness		 Equalizer
Beam
Thickness		 Axle Load(T)
NA12XA1-00 486 456 138 12×12×100×1200 8 8 10 8 12
NA12XA2-00 486 456 138 12×12×100×1200 10 10 10 10 12
NA14XA0-00 486 456 138 12×12×100×1200 10 10 10 10 14
NA14XA1-00 486 456 138 12×12×100×1200 8 8 10 8 14
NA16XA0-00 511 481 138 14×12×100×1200 8 8 10 8 16
NA16XA1-00 511 481 138 14×12×100×1200 10 10 10 10 16

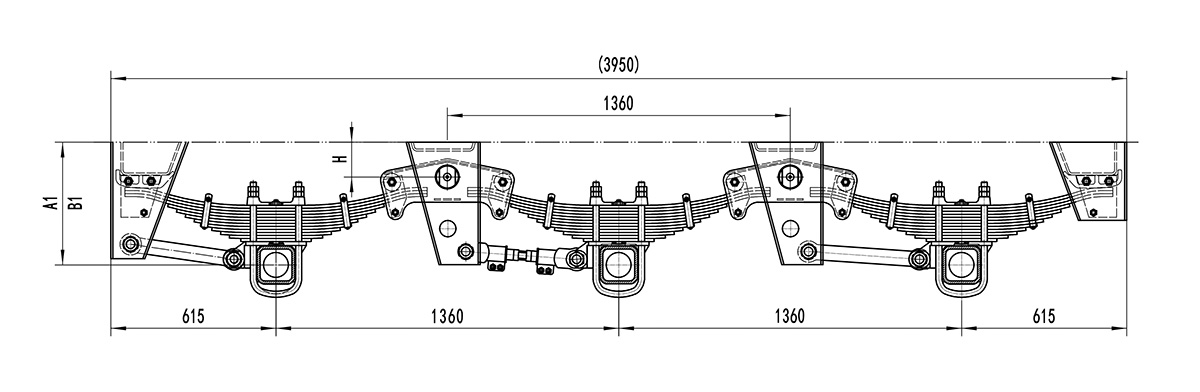

German-Type-Mechanical-Suspension4
