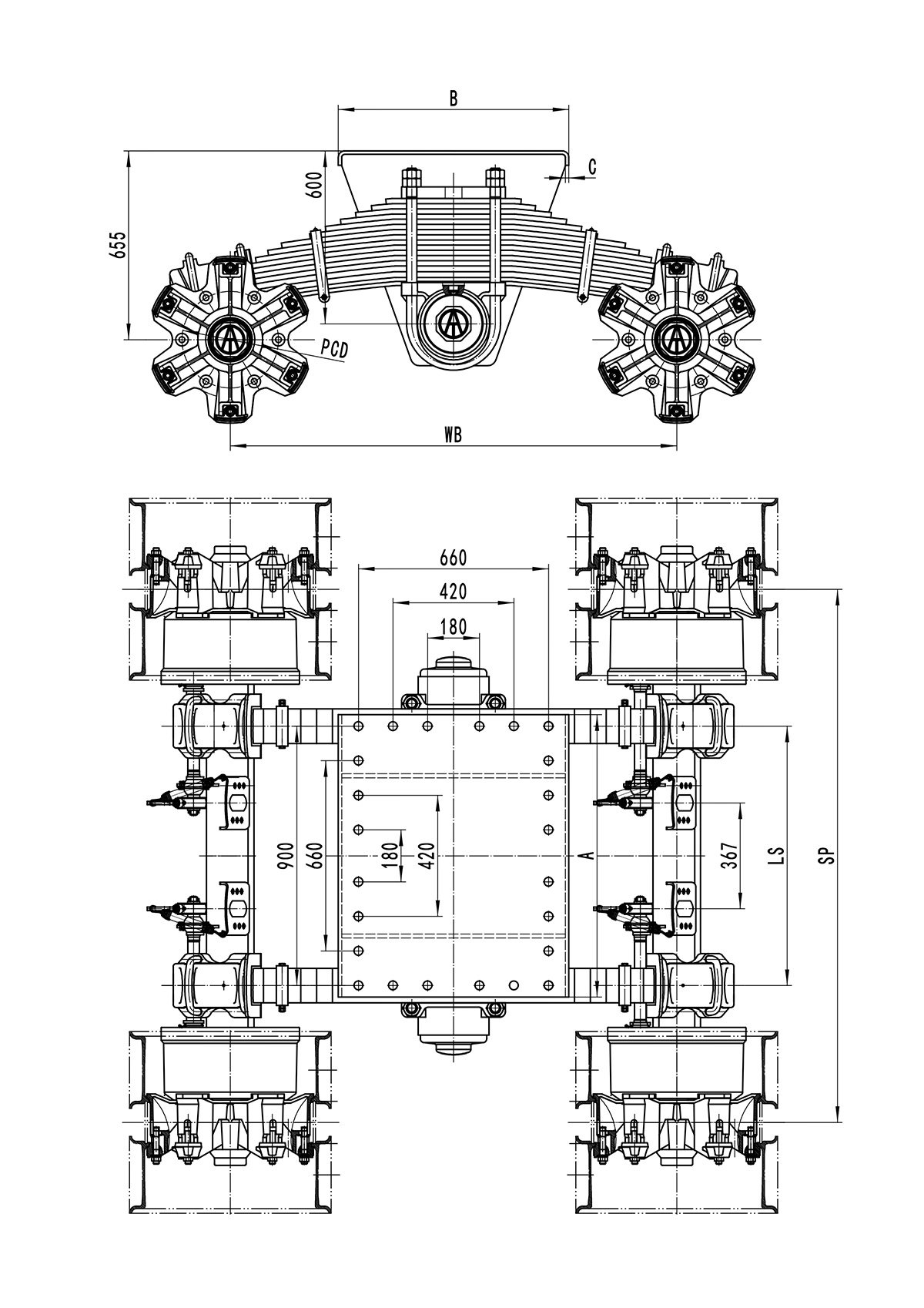

| Germany Bogie SpecificNAion | ||||||||||||
| Item No. | SP | WB | LS | A×B×C | PCD | |||||||
| Capacity（Kg） | Bearing | Track (mm) | Axle Beam (mm) | Wheel Base (mm) | Leaf Spring Center Distance (mm) | Spring Width /QTY (mm) | Panel Dimension (mm) | Brake Size (mm) | Wheel Fixing | Studs (mm) | Recommend Wheel Rim | |
| NA24DXS1-00 | 24000 | 33213 33118 |
1840 | 150 | 1400 | 900 | 90×18 | 980×700×12 | Ø420×200 | Ø335 | 6-M20×2 | 8.50V-24 147-24 |
| NA24DXS2-00 | 24000 | 33213 33118 |
1840 | 150 | 1400 | 980 | 90×18 | 1060×700×12 | Ø420×200 | Ø335 | 6-M20×2 | 8.50V-24 147-24 |
| NA28DXS1-00 | 28000 | 33215 32219 |
1840 | 150 | 1550 | 900 | 120×19 | 980×800×12 | Ø420×200 | Ø335 | 6-M20×2 | 8.50V-24 147-24 |
| NA32DXS1-00 | 32000 | 32314 32222 |
1850 | 150 | 1550 | 900 | 120×17 | 980×800×12 | Ø420×200 | Ø335 | 6-M20×2 | 8.50V-24 147-24 |
