86 Series American Mechanical Suspension

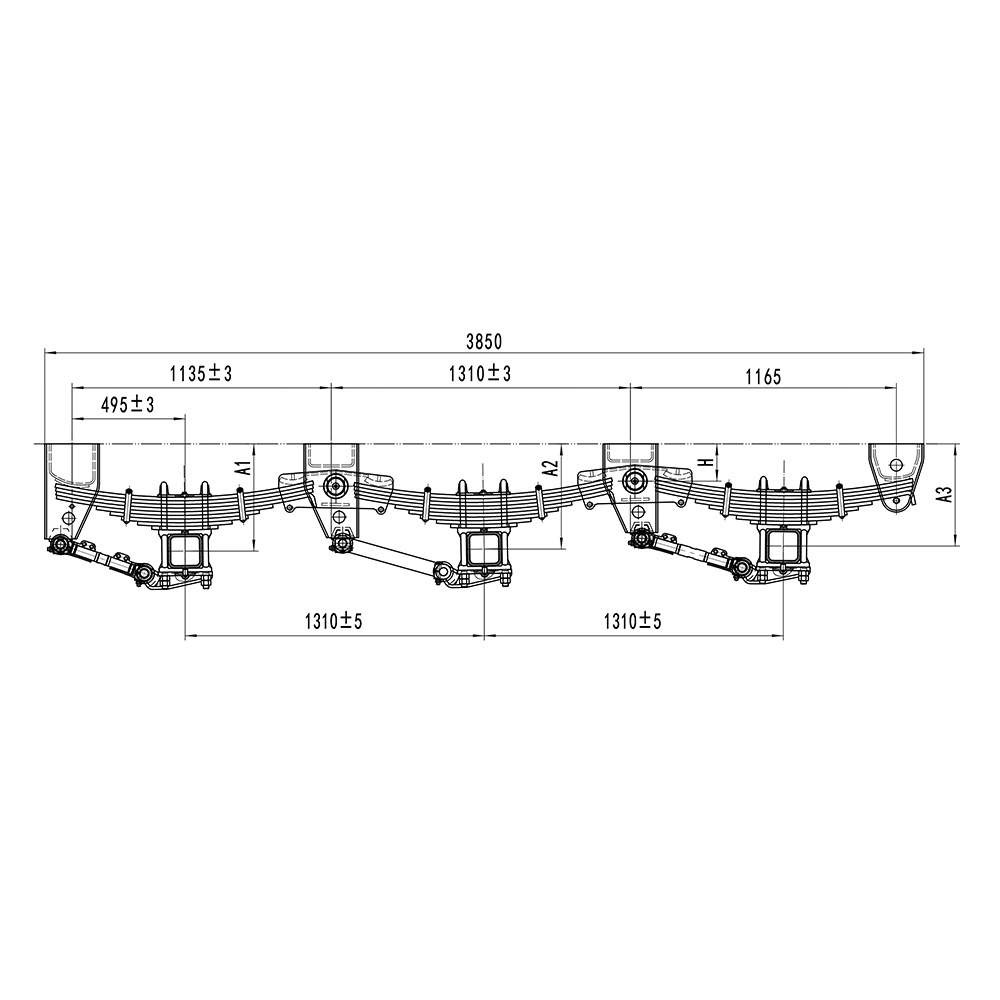

American Tri-axle Mechanical Suspension Specification
Suspension Type	Height of Fifth Wheel (mm)	Qty × Thick × Width (mm)	A1 (mm) Unladen	A2 (mm) Unladen	A3 (mm) Unladen	H (mm)	Axle Load (T)
NAMX8603-00/183	1180	9×16×90	489	480	467	183	16×3
NAMX8603-00/223	1220	9×16×90	529	520	507	223	16×3
NAMX8603-00/253	1250	9×16×90	559	550	537	253	16×3
NAMX8603-00/164	1180	9×16×90	470	461	448	164	16×3
NAMX8603-00/204	1220	9×16×90	510	501	488	204	16×3
NAMX8603-00/234	1250	9×16×90	540	531	518	234	16×3

American Tandem-axle Mechanical Suspension Specification
Suspension Type	Height of Fifth Wheel (mm)	Qty × Thick × Width (mm)	A1 (mm) Unladen	A2 (mm) Unladen	H (mm)	Axle Load (T)
NAMX8602-00/183	1180	9×16×90	473	465	183	16×2
NAMX8602-00/223	1220	9×16×90	513	505	223	16×2
NAMX8602-00/253	1250	9×16×90	543	535	253	16×2
NAMX8602-00/164	1180	9×16×90	454	446	164	16×2
NAMX8602-00/204	1220	9×16×90	494	486	204	16×2
NAMX8602-00/234	1250	9×16×90	524	516	234	16×2

Customized upon request.
