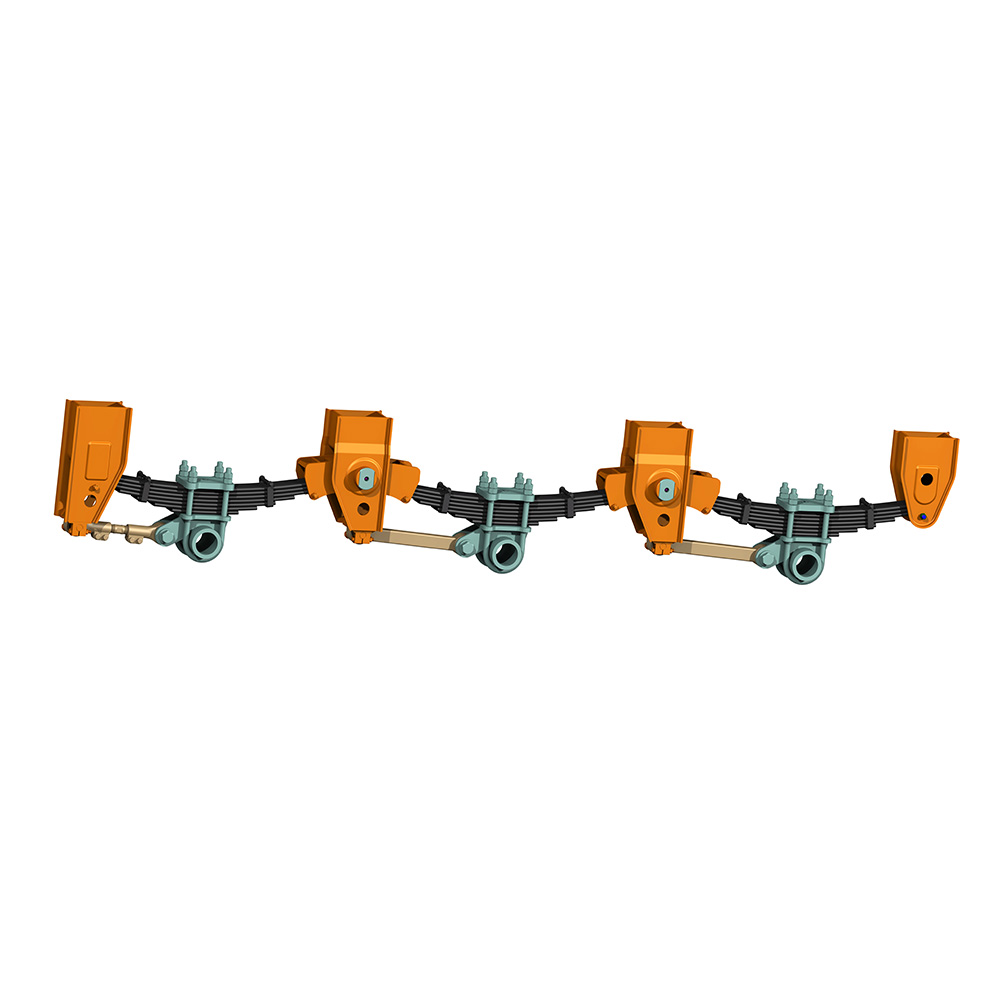

| American Tri-axle Mechanical Suspension Specification | ||||||||
| Suspension Type | Height of Fifth Wheel (mm) | Qty ×Thick ×Width (mm) | A1 (mm) Unladen | A2 (mm) Unladen | A3 (mm) Unladen | H (mm) | Axle Load (T) | |
| ATMX8803-00/183 | 1180 | 9×16×90 | 455 | 446 | 433 | 183 | 13×3 | |
| ATMX8803-00/223 | 1220 | 9×16×90 | 495 | 486 | 473 | 223 | 13×3 | |
| ATMX8803-00/253 | 1250 | 9×16×90 | 525 | 516 | 503 | 253 | 13×3 | |
| ATMX8803-00/164 | 1180 | 9×16×90 | 436 | 427 | 414 | 164 | 13×3 | |
| ATMX8803-00/204 | 1220 | 9×16×90 | 476 | 467 | 454 | 204 | 13×3 | |
| ATMX8803-00/234 | 1250 | 9×16×90 | 506 | 497 | 484 | 234 | 13×3 | |
Customized upon request.
| American Tandem -axle Mechanical Suspension Specification | |||||||
| Suspension Type | Height of Fifth Wheel (mm) | Qty × Thick × Width (mm) | A1 (mm) Unladen | A2 (mm) Unladen | H (mm) | Axle Load (T) | |
| NAMX8802-00/183 | 1180 | 9×16×90 | 441 | 433 | 183 | 13×2 | |
| NAMX8802-00/223 | 1220 | 9×16×90 | 481 | 473 | 223 | 13×2 | |
| NAMX8802-00/253 | 1250 | 9×16×90 | 511 | 503 | 253 | 13×2 | |
| NAMX8802-00/164 | 1180 | 9×16×90 | 422 | 414 | 164 | 13×2 | |
| NAMX8802-00/204 | 1220 | 9×16×90 | 462 | 454 | 204 | 13×2 | |
| NAMX8802-00/234 | 1250 | 9×16×90 | 492 | 484 | 234 | 13×2 | |
| NAMX8802-00/333 | 1180 | 9×16×90 | 591 | 583 | 333 | 13×2 | |
Customized upon request.
