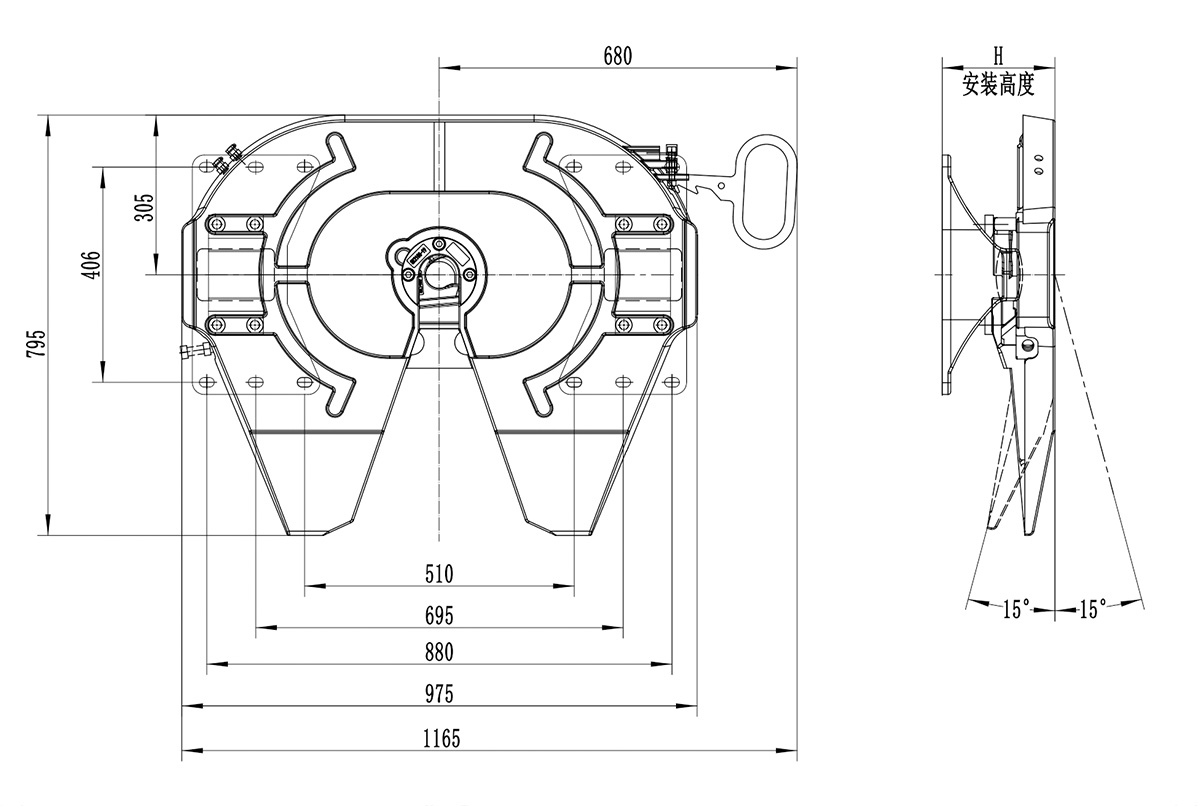

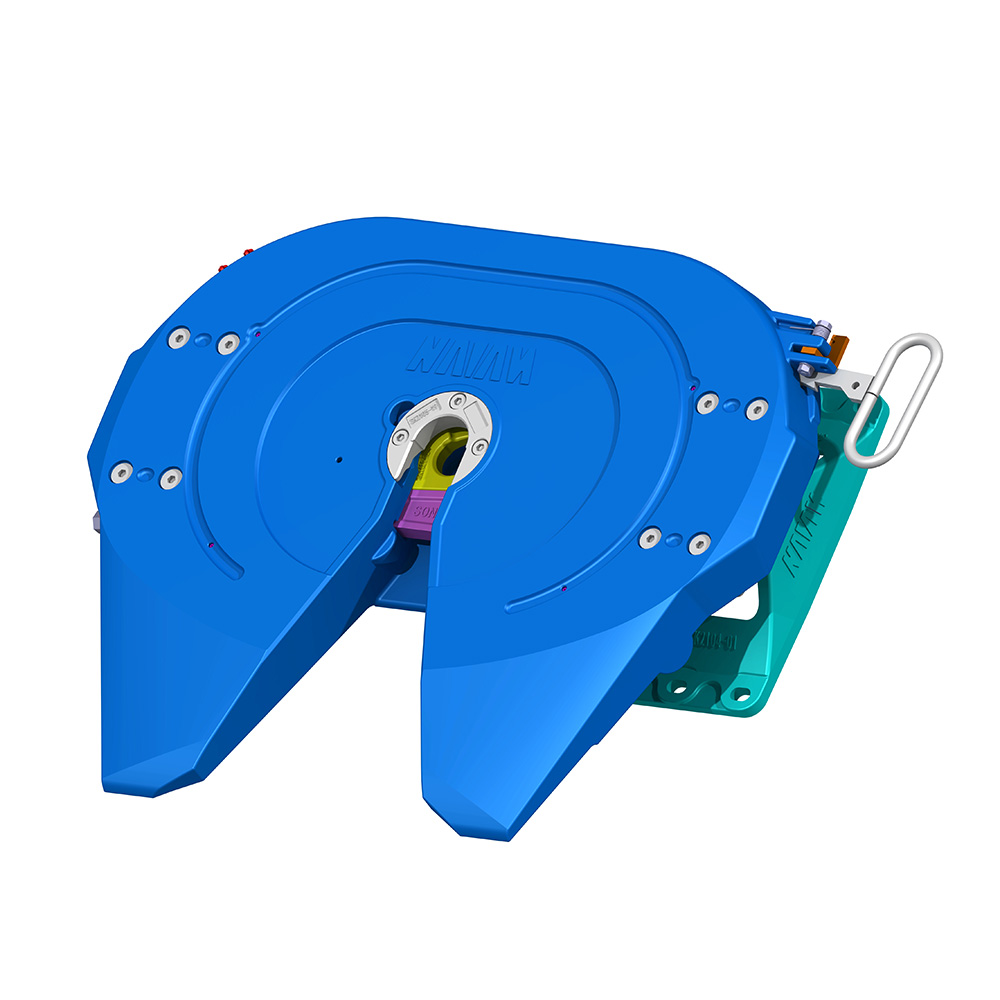

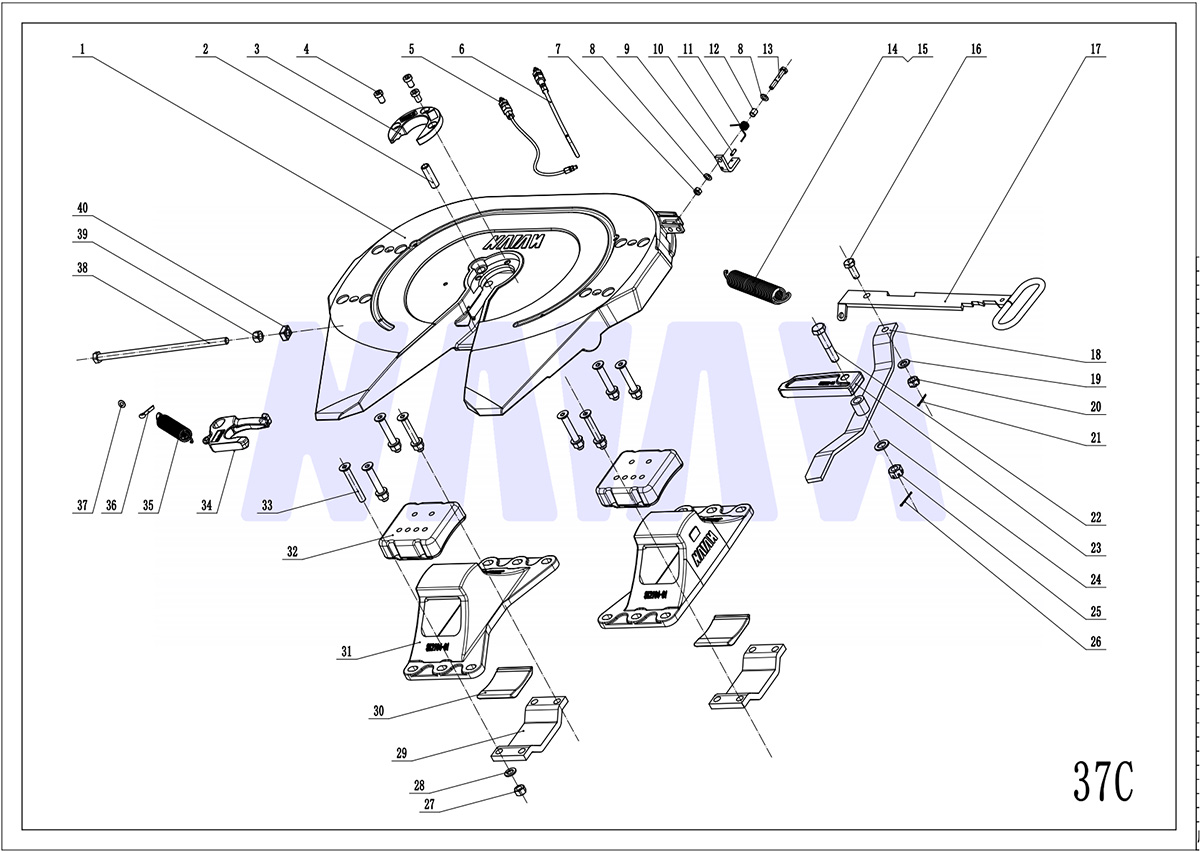

| Quantity: | |
|---|---|
| No. | Type | H | D-Value | Impose Load U | Pitching Angle | Weight | King Pin | ||
| mm | KN | t. | α | β | γ | Kg | |||
| 1 | NA-QYP-1#-150-00 | 150 | 152 | 20 | 15° | 15° | 0° | 149 | 2" |
| 2 | NA-QYP-1#-170-00 | 170 | 151 | ||||||
| 3 | NA-QYP-1#-185-00 | 185 | 152 | ||||||
| 4 | NA-QYP-1#-250-00 | 250 | 160 | ||||||
| 37C Spare Parts | ||||
| No. | Part No. | Pcs/Set | Name | |
| 1 | NA-QYP-1#-01 | SK3103-101N | 1 | Plate |
| 2 | NA-QYP-1#-05-15 | SK2106-67 | 1 | Bolt |
| 3 | NA-QYP-1#-02-1 | SK2015-19 | 1 | Wearing ring |
| 4 | NA-QYP-1#-02-2 | SK2121-07 | 3 | Socket head bolt |
| 5 | NA-QYP-1#-07A | SK3108-02 | 1 | Tube for lubrication |
| 6 | NA-QYP-1#-07B | SK1976 SK1989 | 1 | Tube for lubrication |
| 7 | GB/T 889.1-M10 | SK3521-03 | 1 | Nut |
| 8 | GB/T 95-φ10 | SK3521-03 | 2 | Washer |
| 9 | NA-QYP-1#-04-4 | SK3121-52 | 1 | Latch |
| 10 | GB/T 879.1-φ6×20 | SK3121-52 | 1 | Spring pin |
| 11 | NA-QYP-1#-04-3 | SK3121-59 | 1 | Spring noose |
| 12 | NA-QYP-1#-04-1 | SK3121-59 | 1 | Spring and sorter guide |
| 13 | GB/T 5782-M10×70 | SK3521-03 | 1 | Hexagon bolt |
| 14 | NA-QYP-1#-05-12 | SK3105-20 | 1 | Double tension spring |
| 15 | NA-QYP-1#-05-13 | SK3105-20 | 1 | Double tension spring |
| 16 | NA-QYP-1#-05-3 | SK1513 | 1 | Spindle bolt |
| 17 | NA-QYP-1#-05-1 | SK3105-15 | 1 | Handle |
| 18 | NA-QYP-1#-05-2 | SK3105-18 | 1 | Lever |
| 19 | GB/T 95-φ16 | SK1513 | 1 | Washer |
| 20 | NA-QYP-1#-05-4 | SK1513 | 1 | Slotted nut |
| 21 | GB/T 91-φ3.2×32 | SK1513 | 1 | Split pin |
| 22 | NA-QYP-1#-05-8 | SK3221-01 | 1 | Entire interlock screw bar |
| 23 | NA-QYP-1#-05-7 | SK3205-06 | 1 | Locking bolt |
| 24 | GB/T 95-φ20 | SK3221-01 | 1 | Washer |
| 25 | NA-QYP-1#-05-9 | SK3221-01 | 1 | Slotted nut |
| 26 | GB/T 91-φ3.2×40 | SK3221-01 | 1 | Split pin |
| 27 | GB/T 6184-M16 | SK2121-15 | 8 | Locknut |
| 28 | GB/T 95-φ16 | SK2121-15 | 8 | Washer |
| 29 | NA-QYP-1#-06-4 | SK1372 | 2 | Bridge |
| 30 | NA-QYP-1#-06-3 | SK2105-25 | 2 | Rubber cushion, lower |
| 31 | NA-QYP-1#-06-2-152 | SK2104-01 | 2 | Pedestal H185 |
| 32 | NA-QYP-1#-06-1 | SK1259 | 2 | Rubber cushion, upper |
| 33 | NA-QYP-1#-06-5 | SK2121-15 | 8 | Countersunk bolt |
| 34 | NA-QYP-1#-05-14 | SK1489 RZ | 1 | Lock jaw |
| 35 | NA-QYP-1#-05-16 | SK847 | 1 | Tension spring |
| 36 | GB/T 91-φ8×40 | SK2122-04 | 1 | Eye bolt |
| 37 | GB/T 95-φ8 | SK2122-04 | 1 | Eye bolt |
| 38 | NA-QYP-1#-03 | SK3105-150 | 1 | Adjusting screw |
| 39 | GB/T 41-M16 | SK3105-150 | 2 | Nut |
| 40 | NA-QYP-1#-03-3 | SK3205-07 | 1 | Guide |
