| Quantity: | |
|---|---|

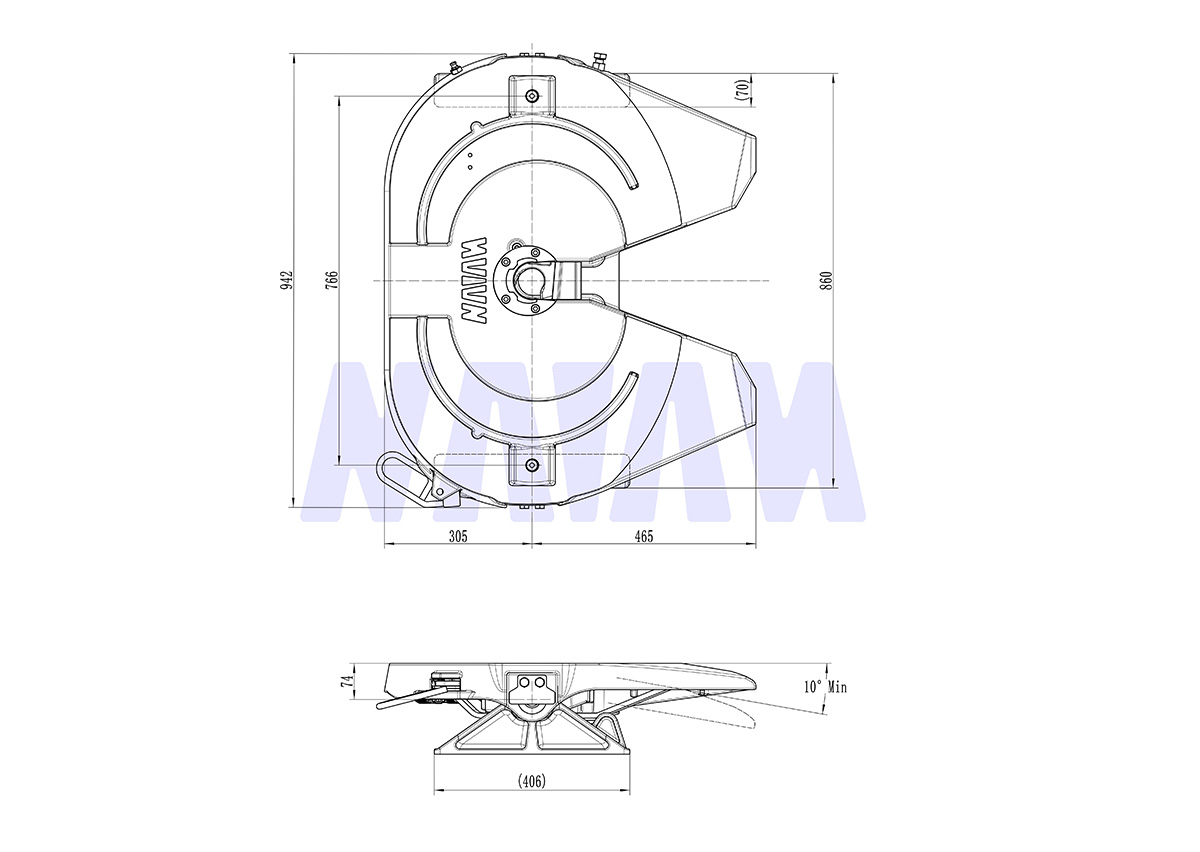

| No. | Type | H | D-Value | Impose Load U | Pitching Angle | Weight | King Pin | ||
| mm | KN | t. | α | β | γ | Kg | |||
| 1 | NA-QYP-37USA-1 | 5.85"/149 | 152 | 25 | Min 10° | Min 10° | 0° | 120 | 2" |
| 2 | NA-QYP-37USA-2 | 6.85"/174 | 120 | ||||||
| 3 | NA-QYP-37USA-3 | 7.85"/199 | 120 | ||||||
| 4 | NA-QYP-37USA-4 | 8.85"/225 | 120 | ||||||
| 5 | NA-QYP-37USAW-1 | 5.85"/149 | 125 | ||||||
| 6 | NA-QYP-37USAW-2 | 6.85"/174 | 125 | ||||||
| 7 | NA-QYP-37USAW-3 | 7.85"/199 | 125 | ||||||
| 8 | NA-QYP-37USAW-4 | 8.85"/225 | 125 | ||||||

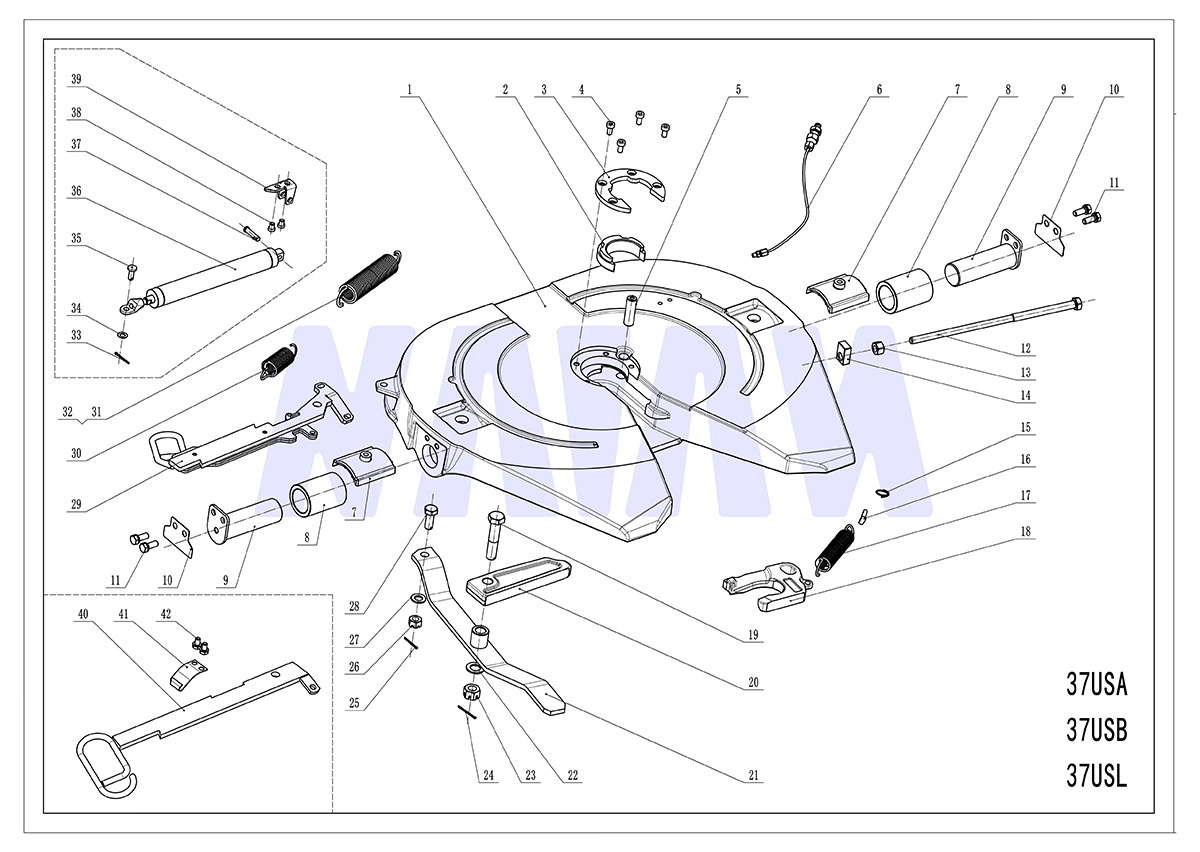

| 37U Spare Parts | ||||
| No. | Part No. | Pcs/Set | Name | |
| 1 | NA-QYP-11#-01 | SK 3103135 | 1 | Plate |
| 2 | NA-QYP-11#-02-2 | SK3105-93 | 1 | Cushion ring retainer |
| 3 | NA-QYP-11#-02-1 | SK3105-92 | 1 | Cushion ring insert |
| 4 | NA-QYP-11#-02-3 | SK73121-55 | 4 | Ring bolt |
| 5 | NA-QYP-11#-05-15 | SK72106-67 | 1 | Lock jaw pivot pin |
| 6 | NA-QYP-11#-07 | SK3108-02 | 1 | Lubricating kit |
| 7 | NA-QYP-11#-06-3 | SK3105-95 | 2 | Collar |
| 8 | NA-QYP-11#-06-2 | SK2905-94 | 2 | Rubber bushing |
| 9 | NA-QYP-11#-06-4 | SK79011-03 | 2 | Bracket pin - Ø50mm |
| 10 | NA-QYP-11#-06-5 | SK73104-47 | 2 | Tab washer |
| 11 | NA-QYP-11#-06-6 | SK70202-15 | 4 | 1/2-13x3/4 lg.Hex bolt |
| 12 | NA-QYP-11#-03-1-390 | SK5007406 | 1 | Adjusting screw |
| 13 | GB/T 41-M16 | SK5007406 | 1 | Nut |
| 14 | NA-QYP-11#-03-2 | SK73205-07 | 1 | Guide piece |
| 15 | NA-QYP-11#-05-18 | SK2106-70 | 1 | Ring |
| 16 | NA-QYP-11#-05-17 | SK2106-69 | 1 | Eyebolt |
| 17 | NA-QYP-11#-05-16 | SK847 | 1 | Lock jaw spring |
| 18 | NA-QYP-11#-05-14 | SK1489LZ | 1 | LH Lock jaw |
| 19 | NA-QYP-1#-05-8 | SK73221-01 | 1 | Locking bar bolt assembly |
| 20 | NA-QYP-1#-05-7 | SK3205-06 | 1 | Locking bar |
| 21 | NA-QYP-11#-05-2 | SK3105-140 | 1 | Lever with bushing |
| 22 | GB/T 95-φ20 | SK73221-01 | 1 | Washer |
| 23 | NA-QYP-1#-05-9 | 1 | Slotted nut | |
| 24 | GB/T 91-φ3.2×40 | 1 | Split pin | |
| 25 | GB/T 91-φ3.2×40 | SK71513 | 1 | Split pin |
| 26 | NA-QYP-1#-05-4 | 1 | Slotted nut | |
| 27 | GB/T 95-φ16 | 1 | Washer | |
| 28 | NA-QYP-1#-05-3 | 1 | Pivot bolt assembly | |
| 29 | NA-QYP-11#-05 | SK75016-04 | 1 | Retractable Handle with spring |
| 30 | NA-QYP-11#-05-6 | SK71005-07 | 1 | Spring |
| 31 | NA-QYP-1#-05-12 | SK3105-20 | 1 | Double tension spring |
| 32 | NA-QYP-1#-05-13 | 1 | Double tension spring | |
| 33 | GB/T 91-φ3.2×40 | SK75015-05 | 1 | Split pin |
| 34 | GB/T 95-φ10 | 1 | Washer | |
| 35 | GB/T 882-φ10×26 | 1 | Bolt | |
| 36 | NA-QYP-11#-04-1 | 1 | Air cylinder | |
| 37 | GB/T 882-φ10×40 | 1 | Bolt | |
| 38 | NA-QYP-11#-04-4 | SK70209-00 | 2 | Low head screw |
| 39 | NA-QYP-11#-04-2 | SK79020-05 | 1 | Cylinder mount |
| 40 | NA-QYP-13#-05-1 | SK 73105-15 | 1 | LH Release handle |
| 41 | NA-QYP-13#-05-6 | SK 70993-00 | 1 | Plate spring |
| 42 | NA-QYP-13#-05-7 | SK 75016-00 | 2 | Hex bolt |
